กลอนประตูโรงแรมแบบทาบบัตร Hotel Door Lock |
![](images/hotel/DSR212Y.jpg) |
Mechanical parts Specification
Panel Size:242*77*18
Door thickness requirement:38mm-60mm.
Japan motor more than 500,000 lifetimes.
Turn handle up to deadbolt lock at inside and outside. Convenience and simplification
Patent detached two-gear clutch device to guarantee the durability of mortise.
stainless steel materia |
Download Specification |
|
|
|
|
![](images/hotel/01.jpg) |

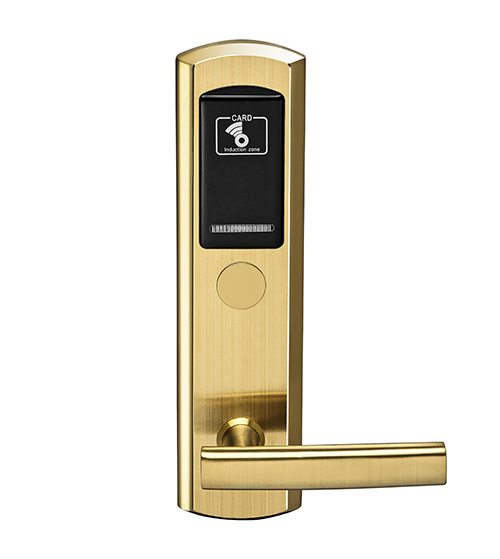

Zinc alloy material
Five-latches mortise, deadbolt function, high security
Match handle: 6205 handle
Adopt America ATMEL Temic encrypted card or PHILIPS' Mifare RF card, IC card, TM card.
Low battery power alarm function.
Different finish choosing, fadeless
Suitable for commercial hotel
Option Mortise: 1#, 4#
Door thickness requirement: above 38mm
Option color: LLPVD、LSPVD、SN
Weight: 3.5kg
Size of plate: 287×73mm |
Download Specification |
|
|
|
![](images/hotel/02.jpg) |
Stainless steel material
Five-latches mortise, deadbolt function, high security
Match handle: 6207 handle, 6212 handle, 6110 handle
Adopt America ATMEL Temic encrypted card or PHILIPS' Mifare RF card, IC card, TM card.
Low battery power alarm function.
Different finish choosing, fadeless
Suitable for commercial hotel
Option Mortise: 1#, 2#, 3#, 4#
Door thickness requirement: above 36mm
Option color: Stainless steel、PVD
Weight: 3.5kg
Size of plate: 244×76mm |
Download Specification |
|
|
EM/MF card ENERGY SAVER 40 AMP |
![](images/hotel/AMP40.jpg) |
- specification:86*86*35(mm)
- Match card type: 125KHz, Mifare, Temic 5557 card.
- Loading currency: Most 40A
- Voltage application:110-220V
- Material: burning resistant PC material
- Delay power off time:8-10 Seconds
- Weight:0.25 KG
- Standard :GB16915.1-2003、GB1691.
- Frequncy:50/60 Hz
- Work temperature:-10℃--60℃
- Work humidity :50℃ 10—95%RH
|
Download Specification |
|
|
DP-18 High Definition Digital Peephole Viewer |
![](images/hotel/DP-18.jpg) |
- Photo/Video
- 24 hr. Security
- 3.5 inch big display
- 32 type ringtone
- Night vision
- Ultra wide angle
|
Download Specification |
|
![](images/hotel/acc.jpg) |
